Jeju · Origin of the raw material 33.49° N · 126.53° E · Lava-Seawater Complex

Jeju offers the naturalness and functionality

Jeju is a clean volcanic island of clear air, water and soil. Its citrus, broccoli, Dendropanax, Ecklonia and carrots carry exceptional active content, which BK bio turns into ingredients at our green-technology BioLabtory.

The raw-material library Request

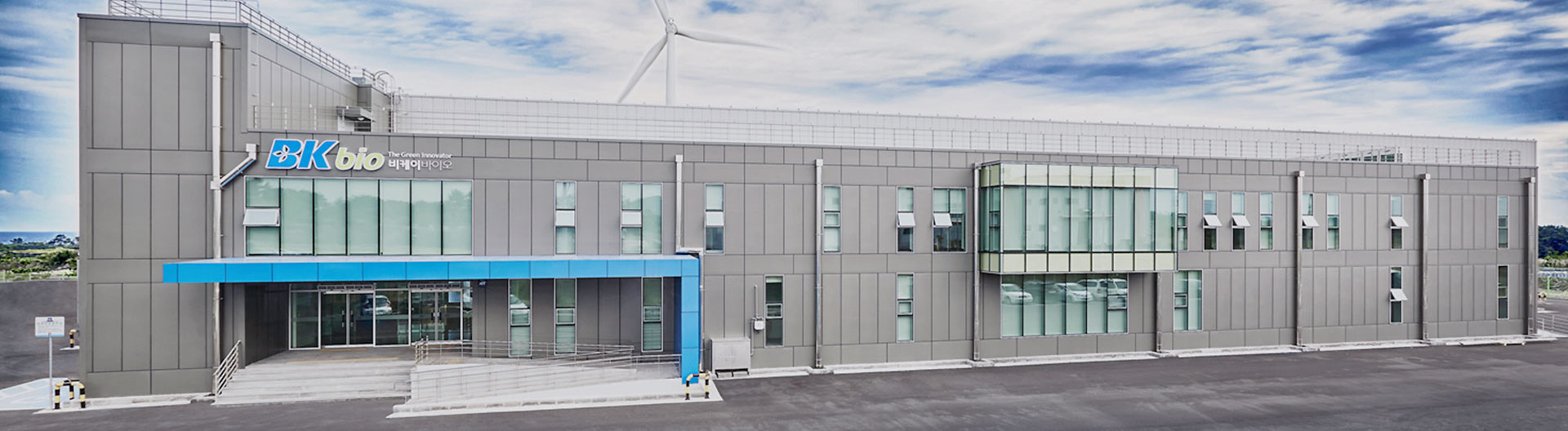

BK bio's Jeju factory exterior in the Lava-Seawater Industrial Complex, signage and a wind turbine against the Jeju sky.

Jeju, in support of the process

From raw-material processing to product,
at the BioLabtory

Sourcing, development, low-heat processing and ingredient creation all happen inside BK bio's BioLabtory. The closer a Jeju field is to our line, the fresher the raw material stays and the less of its active content is lost.

The raw-material library

The gifts of Jeju

Jeju-grown & coastal material groups

Fresh Jeju broccoli leaf and sprout, source of BK bio's sulforaphane ingredients.

Plate 01

Crucifer

Broccoli Brassica oleracea

Leaf and sprout: the source of our sulforaphane family, Brocometa®, BrocoPower® and Brocogni®.

Plate 02

Citrus

Hallabong & citrus Citrus reticulata

Jeju's signature citrus: immune polysaccharides for Immune Polys®.

Jeju Dendropanax morbifera (Hwangchil) tree, source of BK bio's anti-hangover ingredient.

Plate 03

Botanical

Dendropanax

Jeju Dendropanax: the basis of the 2025 KFDA-approved anti-hangover function.

Ecklonia kelp growing on a coastal reef, the source of BK bio's seaweed polyphenol.

Plate 04

Brown algae

Ecklonia cava Ecklonia cava

Coastal seaweed polyphenol: the source for Ecklo Sleep®.

Plate 05

Marine

Hijiki Sargassum fusiforme

Jeju marine extract for Sargacud® and food & beverage applications.

Basalt columnar-joint coastline at Jeju's Daepo, the setting of the lava-seawater source.

Plate 06

CertifiedJeju Water

Mineral base

Lava mineral water

Drawn on-site in the Lava-Seawater Complex: a mineral carrier across the line.

Photography via Wikimedia Commons: Hwangchil (Dendropanax) by Dalgial, CC BY-SA 4.0; Ecklonia kelp by Javier, CC BY 4.0. Jusangjeolli coast and Hijiki: public domain.

Grown on the island

Harvest timing

Main Jeju raw materials · by harvest season

Raw material

JanFebMarAprMayJunJulAugSepOctNovDec

Window

Peak seasonAutumn Winter

Prickly pear 백년초Oct–Jan

Citrus 감귤Nov–Feb

Cabbage 양배추Nov–Feb

Broccoli 브로콜리Nov–Feb

Carrot 당근Nov–Feb

Red beet 레드비트Nov–Feb

Radish 무Nov–Feb

Kiwi 키위Nov–Feb

Potato 감자Nov

Brussels sprouts 방울양배추Dec–Jan

Kohlrabi 콜라비Dec–Jan

Red cabbage 적양배추Dec–Feb

Late winterWinter Spring

Hallabong 한라봉Jan–Mar

Warm seasonSpring Summer

Super sweet corn 초당옥수수May–Jun

Mini chestnut squash 미니밤단호박Jun–Aug

All yearYear-round

Jeju sasa bamboo 조릿대Mar–Dec

A long, four-season growing window means a steady supply of fresh Jeju material into the line for most of the year. Bars mark each material's harvest window across the calendar year.

Origin meets process

Fresh is only the start.
Cold keeps it.

A clean Jeju raw material loses its edge the moment it is processed hot. That is why the island and the line belong together: our cold-processed PEF extraction opens plant cells with electricity, not temperature, so the color, aroma and functional compounds Jeju gave the material are still there when it reaches your spec. The origin sets the quality; the process is what protects it.

How PEF works

The facility

Bio-Labtory production system from raw materials to finished products

HACCP · GMP · FSSC 22000

LocationJeju Lava-Seawater Complex

Factory area10,383 m²

Completed2015

PEF throughput1.0-10.0 t/hr

Equipment14 machines

Founded2000

From raw material to finished product

Stage 01

Extraction

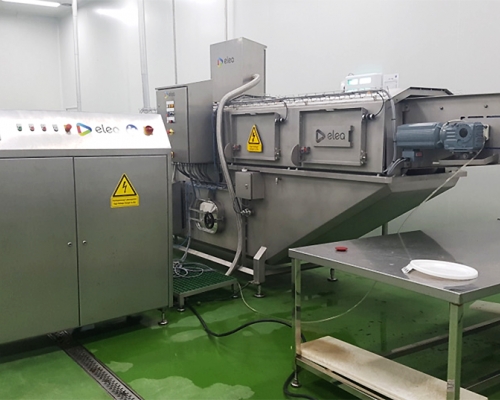

PEF and low-heat extraction draws the active compounds from the raw material.

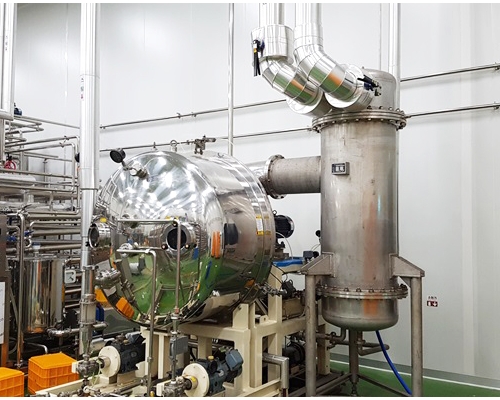

$Centrifugal thin-film separation of target fractions.$

Stage 02

Separation

Target fractions are separated from the crude extract.

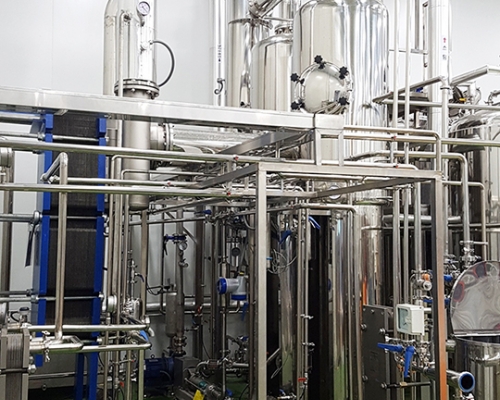

$Plate-type circulation concentrator refining the fraction.$

Stage 03

Purification

The fraction is refined to a defined, repeatable purity.

Stage 04

Bio-conversion

Fermentation and bio-conversion raise the value of the active.

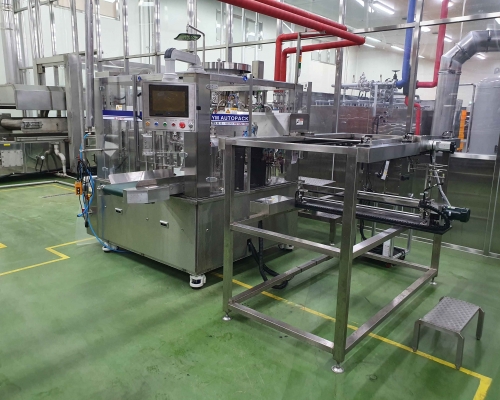

Spout-pouch filling of the finished product.

Stage 05

Processing

Concentration, blending and packaging into the finished form.

Area of application

Health Juice / Beverage Nutritional food / HMR Health Food GMP Bioconversion & Fermentation Functional ingredients / Immune polysaccharides Supercoli^® Concentrate

Facility equipment inventory

From extraction to packaging.

Machines

PEF (Pulsed Energy) System

Use: Beverage sterilization, active-compound amplification, tissue softening, extraction-yield improvement.
Spec: 1.0-10.0 t/hr
Features: Pulse Cell Breaker and cell-component extraction system.
Pulsed energy disrupts cell membranes for active-component extraction and sterilization.
Pulsed energy creates a potential difference inside and outside the cell membrane, causing membrane disruption.
Pulsed electroporation minimizes heat generation and enables effective sterilization while preserving the food's inherent color and aroma.
Enables amplification of beneficial functional substances and high-yield extraction.
Used for extraction, sterilization and new formulation development across food, cosmetics and pharmaceutical applications.

Centrifugal Thin-Film Concentrator

Use: Production of concentrates from fruit, vegetable, and other extracts.
Spec: Water evaporation 750 kg/hr
Features: A 0.1 mm thin film formed by centrifugal force exchanges heat for less than one second at low temperature.
Preserves the original color and aroma of food materials.
Held by BK bio for commercial use in Korea.

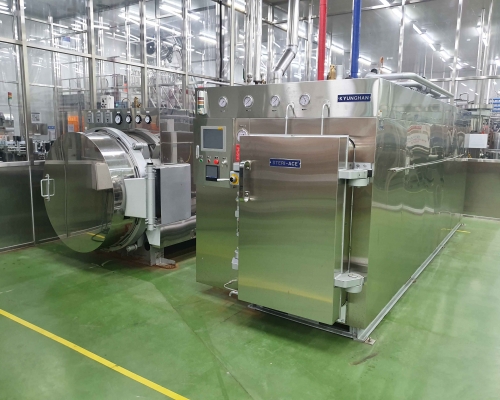

Retort Sterilizer

Use: Cooking and sterilization for pouches, formed containers, canned products, and similar packaging.
Spec: PRS-40-I, shaking type
Features: Limits product discoloration.
Protects product flavor and texture.
Two-stage sterilization raises temperature quickly from the first stage to the second stage.
Does not damage packaging materials.

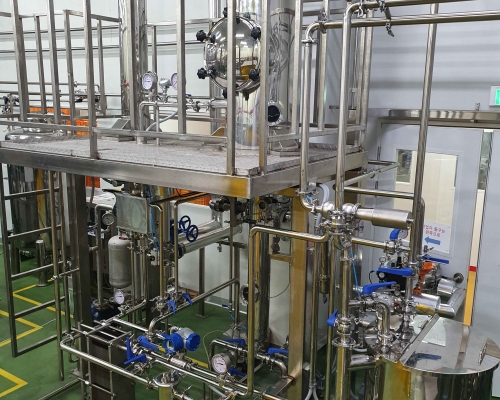

DSI Sterilizer

Use: Sterilization of harmful microorganisms and spores.
Spec: 1,000 L/hr
Features: Direct steam injection heats product for high-quality sterilization.
Filtered food-grade steam is safe for direct product contact.
Holding time: 2 seconds.

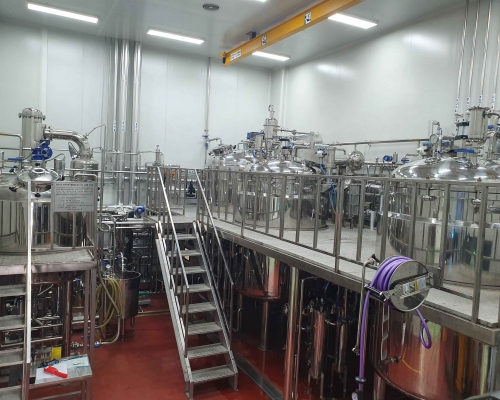

N.C.E Concentrator

Use: Concentrates extracts and fermentation broths up to high concentration, 70 Bx.
Spec: 400 kg/kr
Features: N.C.E. means Natural Circulation Evaporator.
Natural-circulation concentrator.
Steam heating temperature can remain at 95 C or below with automatic heating pressure control.

Extraction System

Use: Static extraction with jacket heating.
Spec: 3,000 L * 2
Features: Structure allows steam sterilization.
Can support high-temperature sterilization at 120 C during fermentation.

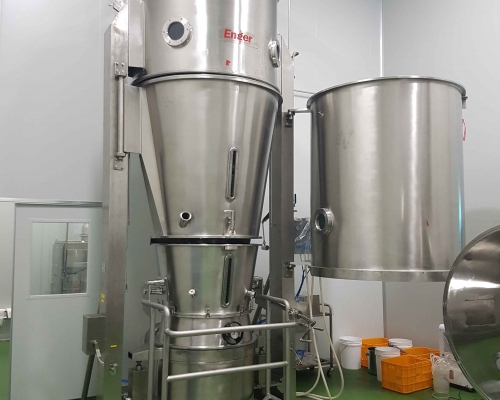

Fluid-Bed Granulator

Use: Mixing, coloring, and drying powders and beverage additives.
Spec: 200 kg/batch
Features: Can be used for multiple functions including mixing and drying.
Special bag filter reduces static electricity.
Closed-vessel process supports hygienic operation.

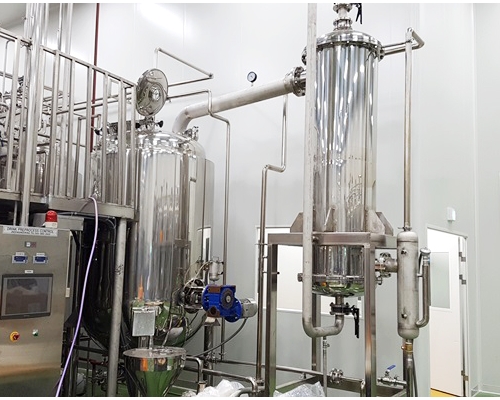

Batch Concentrator

Use: Manufacture of fruit, vegetable, and other extract concentrates and jams.
Spec: 3.0 t/hr
Features: Batch-type concentrator.
Can concentrate high-viscosity products such as jams.

Plate-Type Circulation Concentrator

Use: Manufacture of concentrates from fruit, vegetable, and other extracts.
Spec: Water evaporation 3.0 t/hr
Features: Extract passes quickly through thin plate channels for brief heat exchange.
Helps preserve the original color and aroma of food materials.

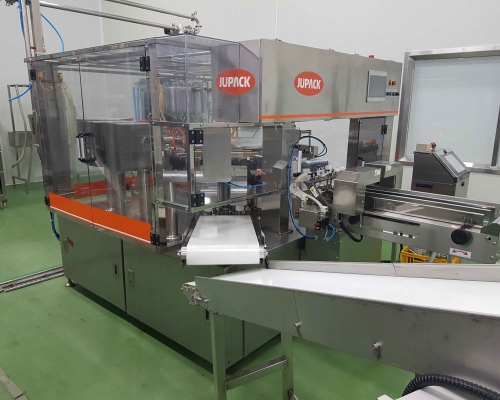

Two-Lane Pouch Filler

Use: Liquid filling.
Spec: 3,600 EA/hr * 2
Features: Filling volume: 80 g to 120 g.
Compatible with stand-up pouches.

Spout Pouch Filler

Use: Liquid and high-viscosity filling.
Spec: 3,000 EA/hr
Features: Filling volume: 80 g to 120 g.
Compatible with general caps, safety caps, and retort caps.

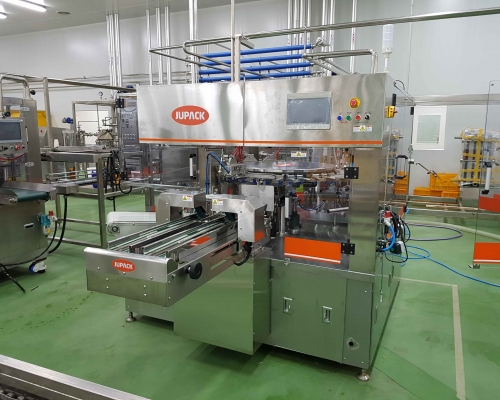

One kilogram large-capacity pouch filler at BK bio's Jeju facility. — 12

1 kg Large-Capacity Pouch Filler

Use: Large-capacity filling for puree and liquids.
Spec: 1,500 EA/hr
Features: Filling volumes: 500 g and 800 g to 1,200 g.
Corner stand-up pouch format.

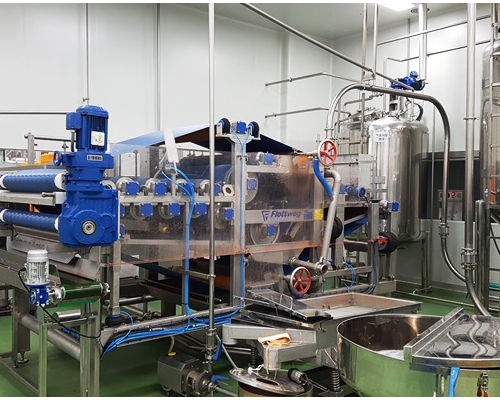

Belt Press Juicer

Use: Juicing fruits, vegetables, and other agricultural products.
Spec: 3.0 t/hr
Features: Strong compression juicer using belt tension.
High yield for firm materials including carrot, radish, cabbage, and apple.

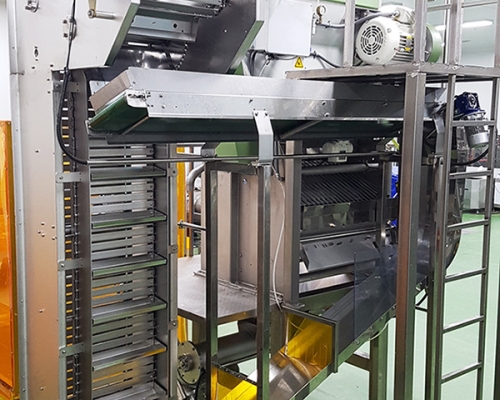

Citrus Juicer

Use: Manufacture of juice from mandarin, Hallabong, orange, grapefruit, and lemon.
Spec: 500 fruits/min
Features: Juice and peel separate in 0.1 seconds, with juicing in 0.1 seconds for fresh juice production.
Held by BK bio in Korea.

The record behind the origin

Since 2000

Founded · Jeju

10,383 m²

Jeju plant area

Facility machines

Branded ingredients

Patents · US·JP·CN

1 of 1

PEF line in Korea

Recognized by UNESCO

Jeju Island has achieved the UNESCO Triple Crown.

2002

Biosphere Reserve

UNESCO MAB

2007

World Natural Heritage

UNESCO WHC

2010

Global Geopark

UNESCO GGN

Designation photography via Wikimedia Commons & Unsplash: Hallasan by Basile Morin (CC BY-SA 4.0); Seongsan Ilchulbong by Korea.net / KOCIS (CC BY-SA 2.0); Jeju coast via Unsplash.

Request

Tell us your application and target spec.
We'll match the ingredient and send a sample.

Request Browse the catalogue

From raw-material processing to product,at the BioLabtory
